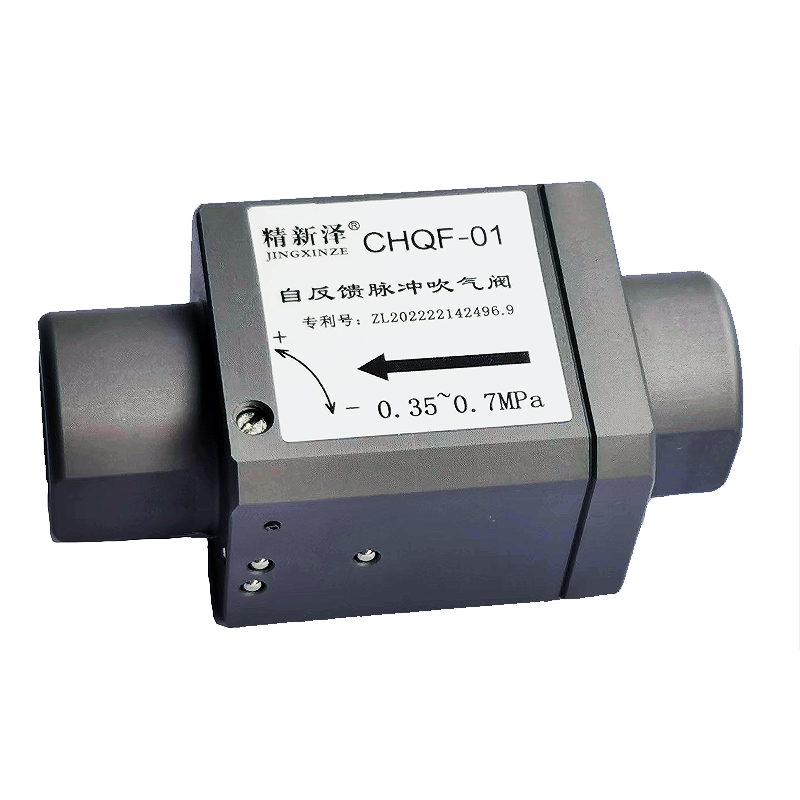

Customized High-quality OEM/ODM Paris Pulse Air Valve in Professional Factory & Suppliers-Jingxinze

Pulse airflow can be generated without the use of electric control
Aluminum alloy material, light weight
The pulse frequency is adjustable, the adjustment range is 3~12HZ
Can save 45%~60% of compressed air
Can avoid sudden drop in air pressure in the air supply pipeline when blowing

Under the pipeline pressure of 0.5MPa, the instantaneous maximum flow rate of the product is about 500L/min, the instantaneous minimum flow rate is 0, and the comprehensive maximum compressed air flow consumption is about 220L/min. The output end is connected to the blowing nozzles of different apertures, and its comprehensive flow loss is about half of the flow rate when the blowing nozzle is blown directly. (For the flow loss data of different specifications of blowing nozzles when blowing directly, please refer to the last page of the manual. This product is suitable for matching with blowing nozzles with apertures of 3.5mm and below).

Medium	Compressed air
Pressure range	0.35~0.7MPa
Temperature range	5~50℃
Pulse frequency adjustment range	3~12HZ
Product Weight	About 75g

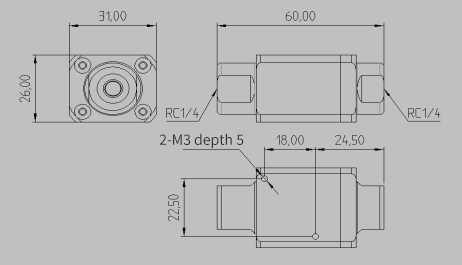

Internal thread at both ends of the product	RC1/4
